RVRN Trust Case
ResolvedHub Bore Correction
Resolved Center Bore Case.
Engineering correction for a bespoke 2014 T-Rex Campagna build. When the vehicle's actual rear hub diameter slightly exceeded standard OEM database records, RVRN provided an immediate local machining resolution to ensure perfect, secure seating.
01 · Resolution Timeline
From feedback to final fitment.
RVRN's rapid response after the customer reported a center bore seating mismatch on the rear axle during installation.
09/18/2025
Order placed
Bespoke order initiated for a staggered 18/22-inch Chrome RV-T081 setup.
10/08/2025

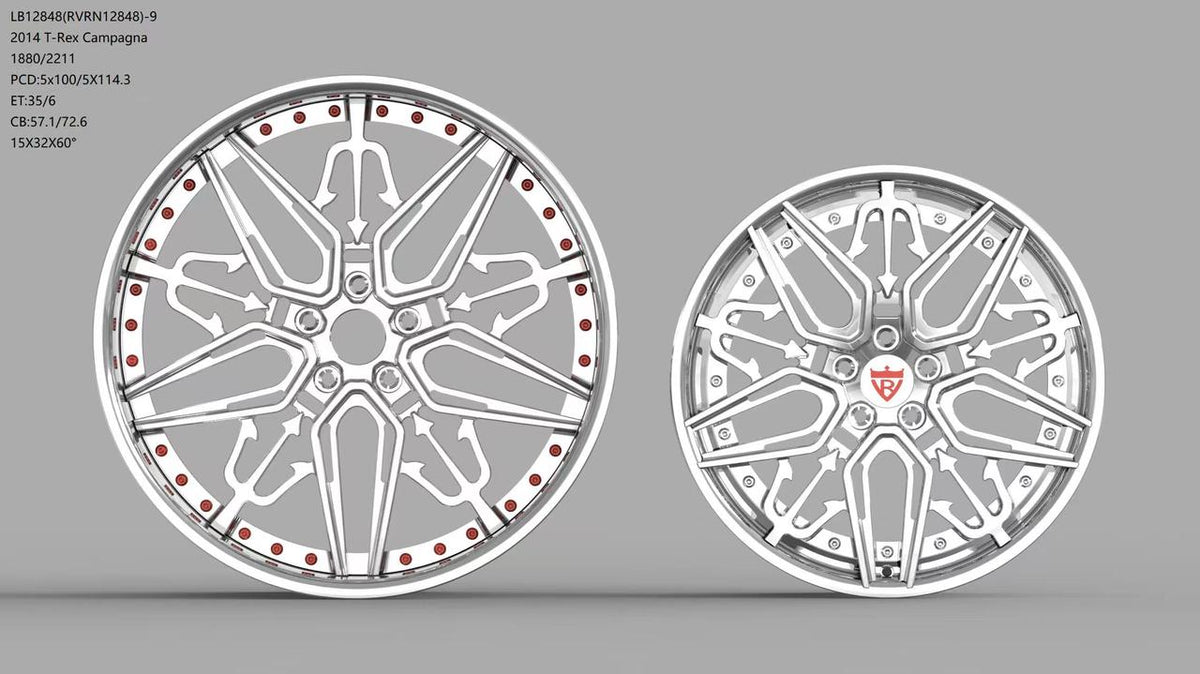

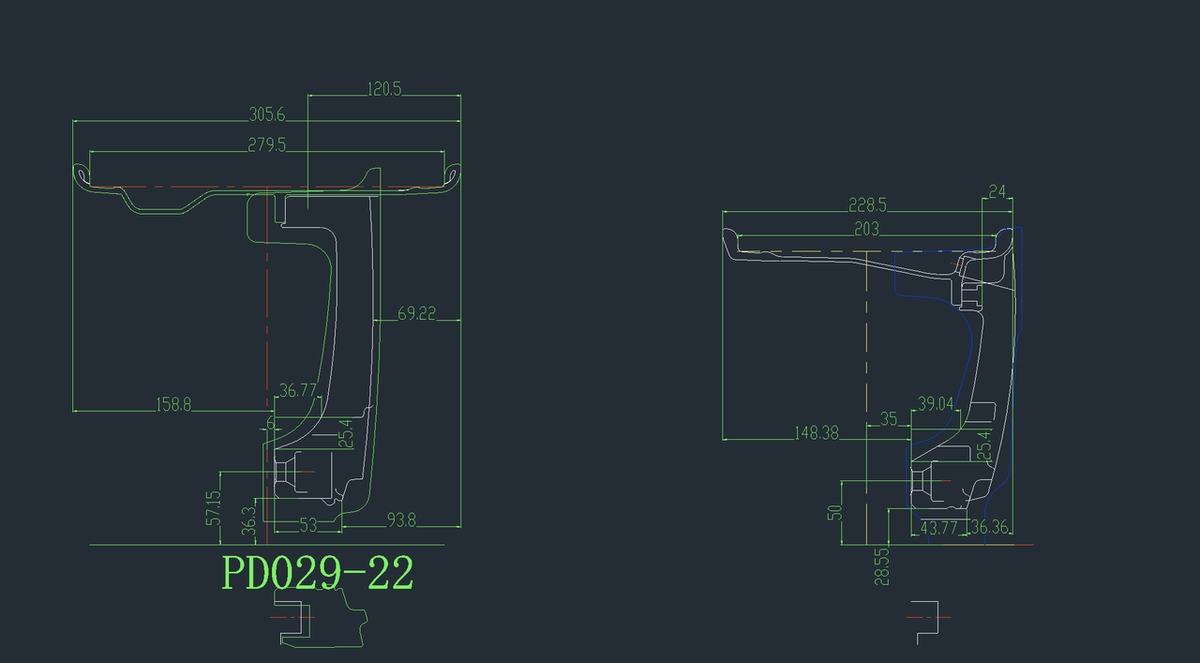

Drawings confirmedEngineering blueprints approved
Engineering blueprints were finalized and approved by the client.
12/15/2025
Installation FeedbackRear center bore seating mismatch
Front wheels installed perfectly. Rear center bore was reported as too small to seat on the hub.
Within 1 Hour
Technical ReviewLocal adjustment authorized
RVRN analyzed standard OEM data and authorized an immediate local precision adjustment program.
12/18/2025
Resolution & Fitment
Rear center bores were adjusted at a local CNC facility. Final fitment confirmed with zero vibration.
02 · Build Background
Staggered chrome setup. Maximum rear lip.

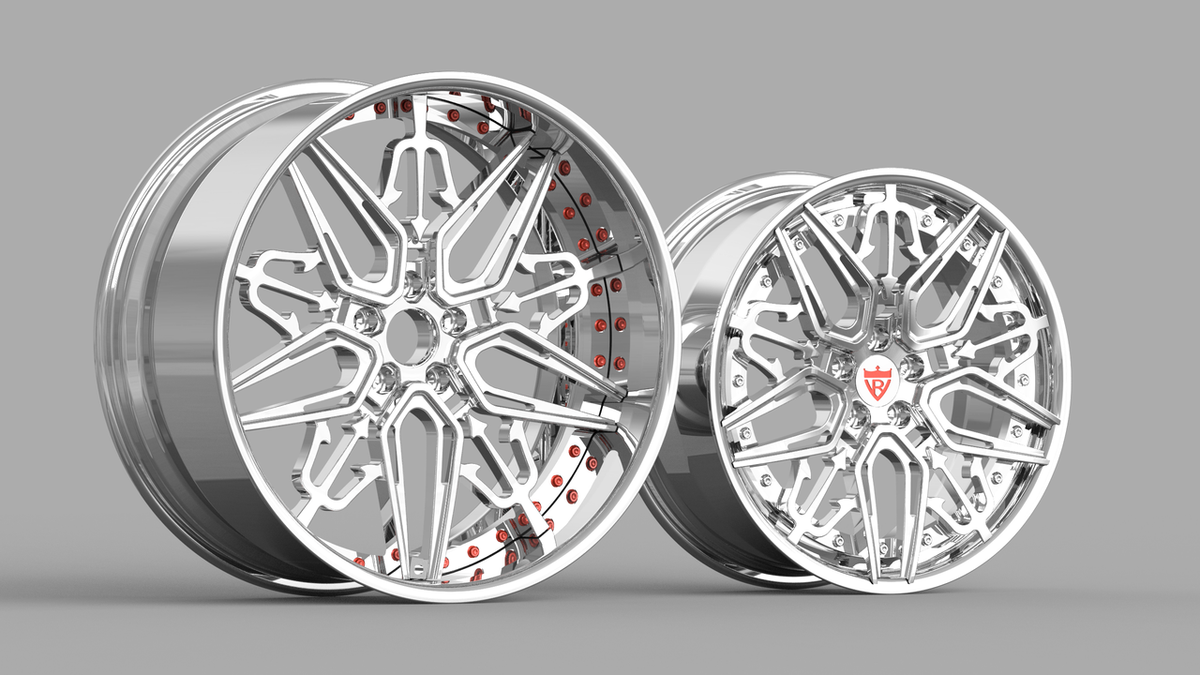

The 2014 T-Rex Campagna required a highly specialized staggered 18x8 front and 22x11 rear configuration. The goal was to maximize the rear chrome lip depth while keeping a perfect flush fitment inside the open-wheel fenders.
Vehicle
2014 T-Rex Campagna
Wheel Model
RV-T081
Front Size
18×8 +35
Rear Size
22×11 +6
Finish
All Chrome
GOAL
Max Lip · Flush Fitment
PCD
Front 5×100, Rear 5×114.3
CB
Front 57.1mm, Rear 72.6mm
03 · Original Fitment Data
The original setup was based on verified records.
RVRN engineering referenced widely published OEM technical specifications and past platform records, showing a standard 72.6mm rear hub diameter for production.
Verified specifications. Approved blueprints
Order placed on 09/18/2025. Engineering drawings confirmed on 10/08/2025.
Maximum chrome lip configuration selected.
The client opted for a maximum chrome lip configuration, requiring aggressive offsets on the staggered setup.
Staggered width and load ratings confirmed.
Drawings confirmed the staggered width and load ratings were optimized for the T-Rex's lightweight chassis.
04 · Installation Issue
Rear axle seating mismatch vs Database specs.
While the front wheels seated perfectly, the rear wheel center bore was found to be slightly too tight to slide over the vehicle's rear hub face.
Hub-Centric Tolerances on Classic Platforms.
This minor variance was caused by real-world vehicle conditions. For classic or low-volume specialty platforms (older than 10 years), standard OEM specifications can deviate due to manufacturing tolerances, oxide layer buildup, or previous hub refurbishment.
05 · Corrective Solution
Onsite precision re-machining. Fully reimbursed.
To avoid long shipping delays for the customer, RVRN calculated the required clearance and authorized a local CNC specialist to perform a precision hub bore adjustment.
Immediate Assessment
Engineering team reviewed the case within 1 hour, verifying that the wheel's structural integrity allowed a safe micro-adjustment.
Local CNC Adjustment
RVRN authorized a local professional shop to adjust the rear center bore to match the actual measured hub size.
100% Cost Coverage
All machining and local shop fees were fully reimbursed by RVRN, resolving the issue in just 3 days.
Secure Seating Confirmed
The precision adjustment preserved the hub-centric seating relationship while avoiding unnecessary shipping delays.
06 · Final Fitment Confirmed

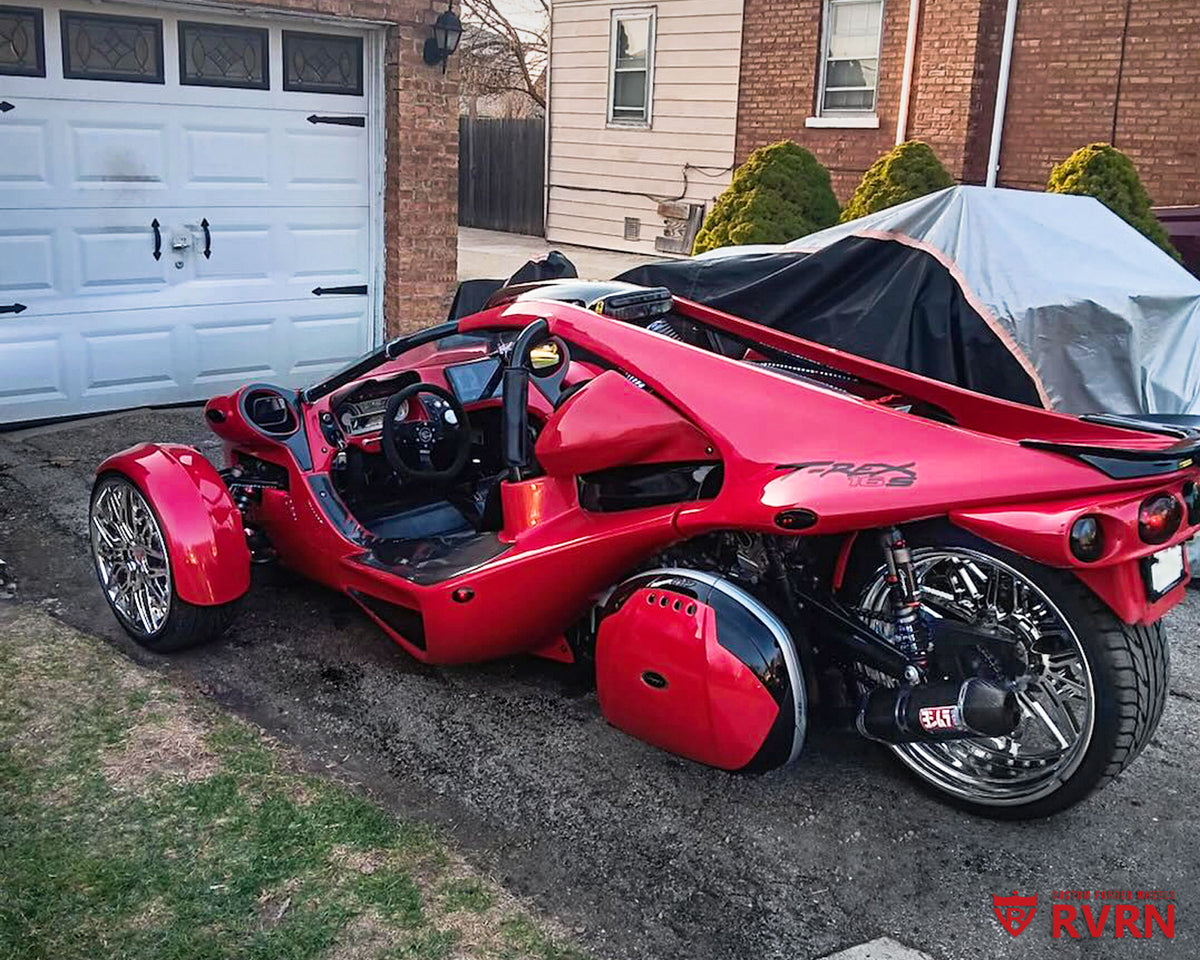

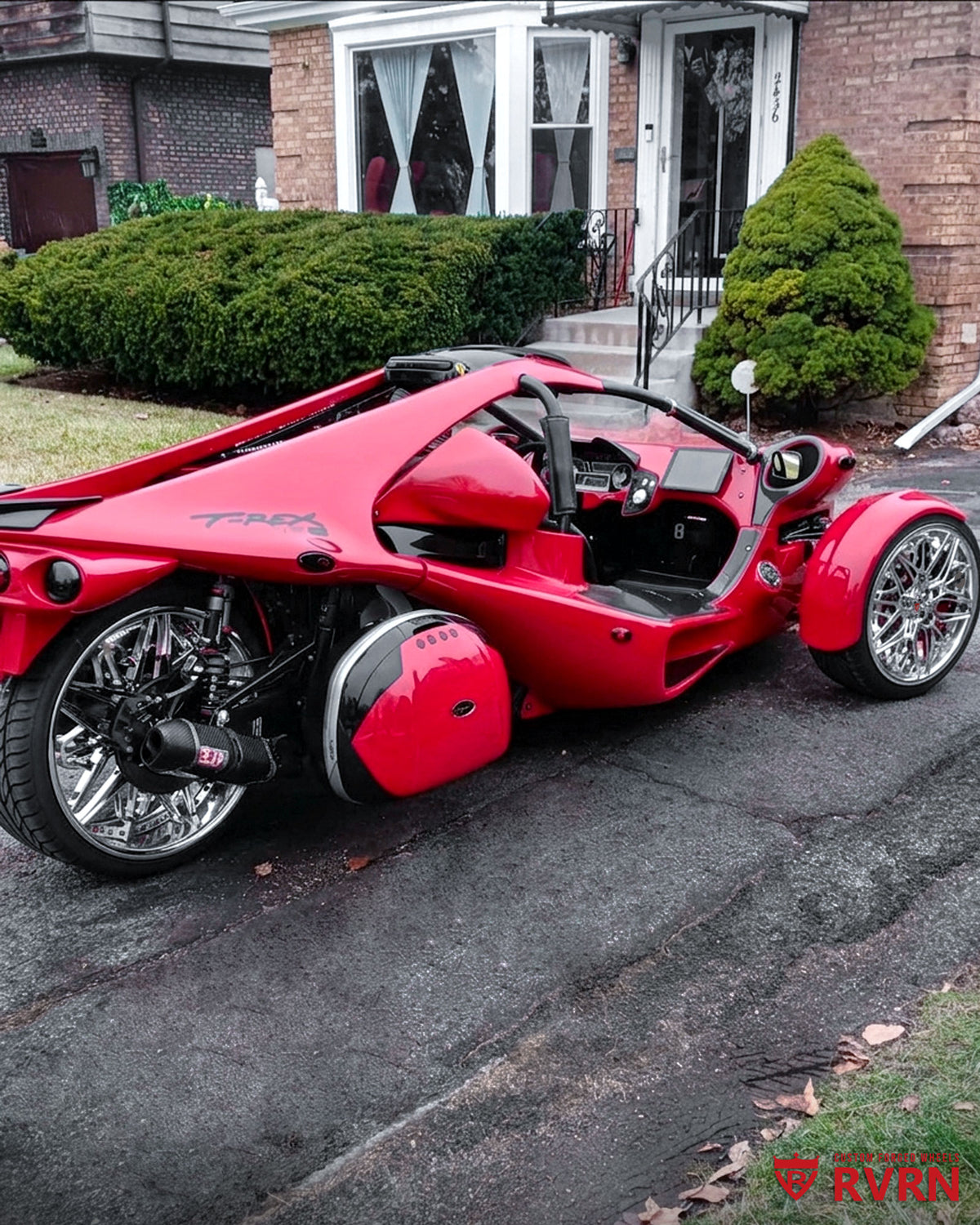

Perfect installation confirmed on 12/18/2025.
The customer completed the installation and confirmed flawless seating and high-speed stability.
Bespoke seating completed.
The adjusted rear hub setup achieved perfect, zero-vibration concentricity, delivering the desired aggressive stance and maximum chrome lip effect.
12/18/2025Final Fitment
Rear AxisCB RE-MACHINED
ConcentricSEATING CONFIRMED
100%COST REIMBURSED
07 · Process Improvements
Preventive & Quality Improvements
Specialty Platform Hub Pre-Verification
For classic, low-volume, or custom chassis (older than 10 years): - On-site physical hub measurement is now requested before final production release to verify potential database deviations.
Restoration & Oxide Tolerance Check
Engineering teams must account for historical wear, refurbishments, and protective coating buildup on older hubs, adding a safety clearance margin (+0.1mm to +0.15mm) when necessary.
Multi-Database Cross-Validation
Prior to machining, hub specifications are cross-validated against both official OEM records and our proprietary "real-world build history" database.
Risk Cataloging
Case #RVRN 12848 is logged into the RVRN "Specialty Platform" directory to automatically flag future T-Rex Campagna projects.
From the Engineering Team
Engineering is about handling the details others overlook.— RVRN Engineering Team
