Verified installation data was reviewed.
Width and offset compatibility were checked against verified G90 platform records.
RVRN Trust Case
ResolvedHigh-Performance Brake Review
Resolved Brake Clearance Case.
Engineering review and corrective solution for the 2026 BMW M5 G90. When the new platform's steel brake calipers required additional barrel clearance, RVRN remade the front wheels with revised engineering to ensure perfect fitment.
01 · Resolution Timeline
From feedback to final fitment.
RVRN’s technical response after the customer reported front caliper interference during the first installation.
03/13/2026
Incident
Rear fitment confirmed. Front wheel barrels reported hitting the OEM steel brake calipers.
Within 1 Hour
Engineering ReviewClearance variance identified
RVRN engineering reviewed the onsite measurements, identifying a 20mm clearance variance on the new G90 platform.
03/15/2026
Same-Day SolutionRevised barrel specifications finalized
Corrective machining and revised barrel specifications finalized. Priority production initiated for replacement front wheels.
Priority Production
Replacement Front WheelsMoved to the top of production queue
Two replacement front wheels moved to the top of the production queue, reducing wait time by 5 weeks.
05/20/2026
Final installation
Second installation completed successfully. Perfect brake clearance and structural safety confirmed.
02 · Build Background
Factory steel brakes. Max concavity goal.
The 2026 BMW M5 G90 featured standard OEM steel brakes. The build goal was to achieve maximum face concavity while maintaining a flush fitment without any aftermarket spacers.
Vehicle
2026 BMW M5 G90
Wheel Model
RV-DR08D
Finish
Gloss Black
Lip Depth Target
Maximum
Front Size
20×10.5
Rear Size
21×11
PCD
5x112
Center Bore
66.6mm
03 · Original Fitment Data
Initial setup based on verified platform records.

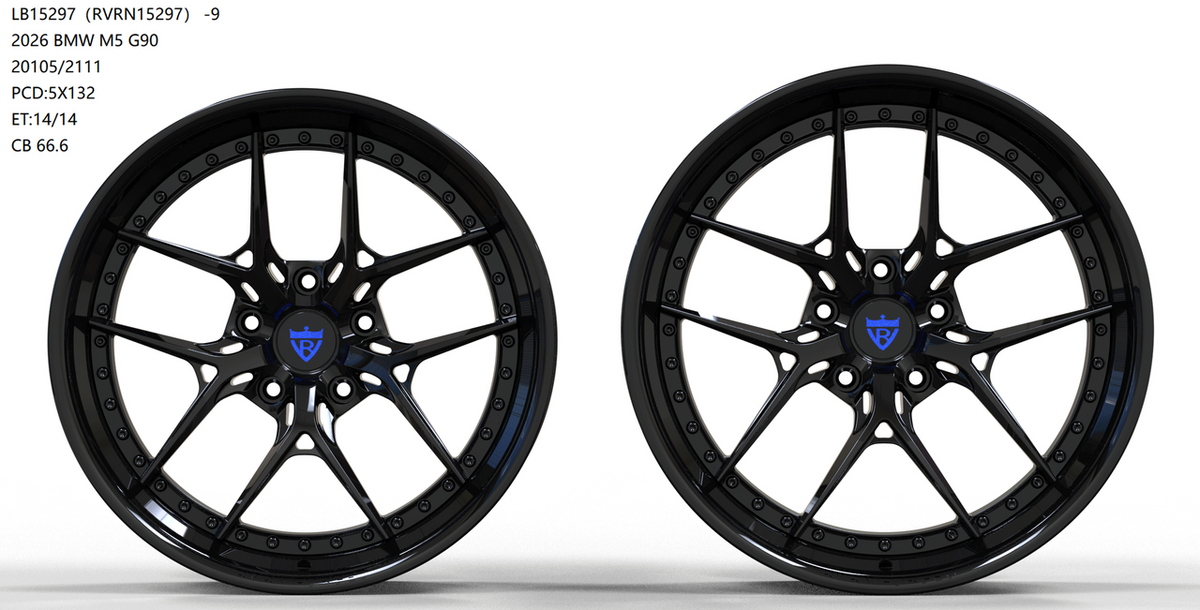

RVRN engineering referenced verified fitment data for the G90 platform. Detailed 3D renders were provided and approved by the customer before production.
Verified data. Customer-approved direction.
Order placed on 12/30/2025. Engineering drawings confirmed on 01/06/2026.
The RV-DR08D design was selected.
The two-piece RV-DR08D design was selected to balance weight and aesthetics.
Drawings confirmed the max-concavity profile.
The approved drawings confirmed the max-concavity profile was safe for production.
04 · Installation Issue
Front caliper clearance required engineering review.

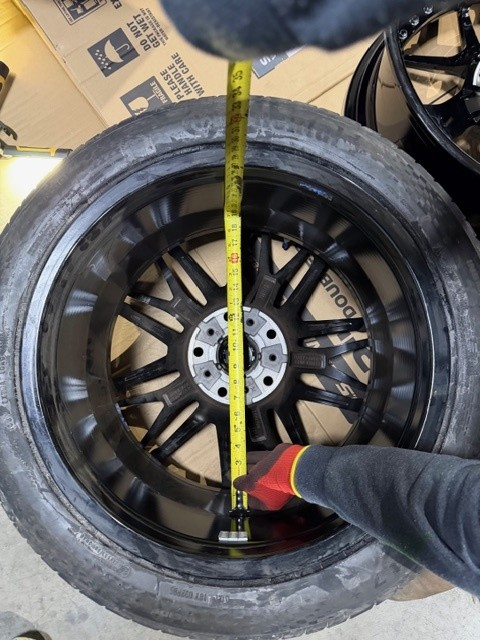

During installation, the front wheel barrels would not fit over the large BMW M5 G90 front brake calipers.
Caliper Interference Identified.

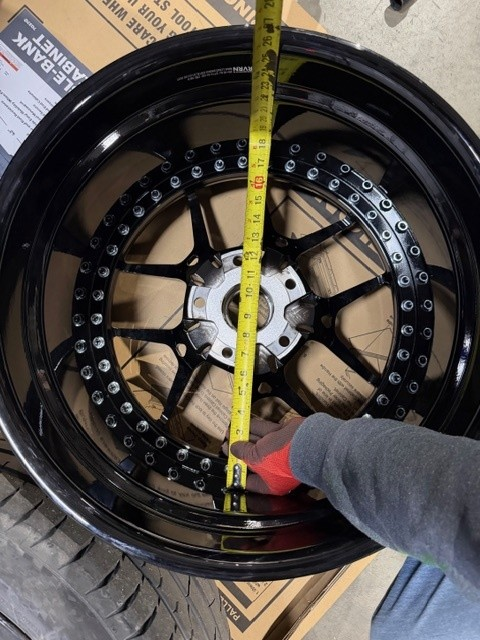

This was a low-probability fitment variance. Internal review confirmed the front barrel's inner diameter of 469mm was 20mm too narrow for the G90's massive steel brake setup, a detail not captured in early platform data.
05 · Corrective Solution
Recalculated. Remade. Priority for G90.
RVRN recalculated the barrel inner diameter, offset, and brake safety margins. To avoid forcing an unsafe setup, two replacement front wheels were remade entirely.
1-hour internal assessment

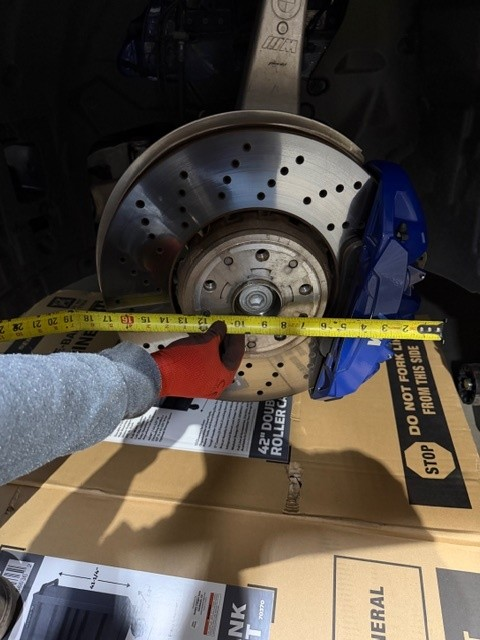

RVRN engineering team immediately conducted a specialized review based on customer-provided photos and videos.
Revised front specification
The barrel inner diameter and clearance window were adjusted to create a 20mm safer fitment margin.
Priority Production
The replacement wheels were remade in 3-4 weeks, significantly faster than the standard RVRN lead time.
Structural Integrity
The revised design maintained full load ratings while expanding the internal brake clearance window.
06 · Final Fitment Confirmed

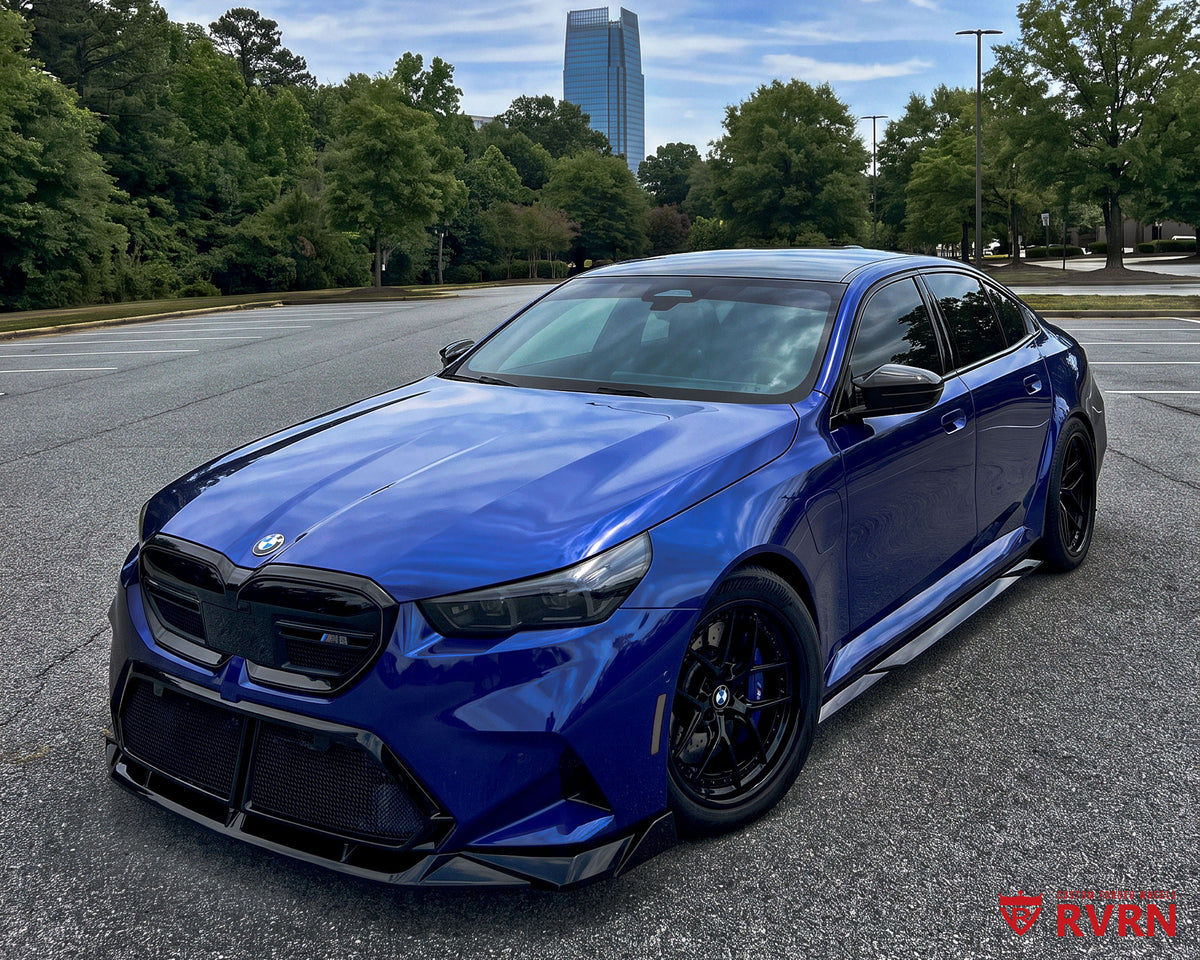

Final fitment confirmed on 05/20/2026.
The customer completed the second installation and confirmed perfect fitment and safety.

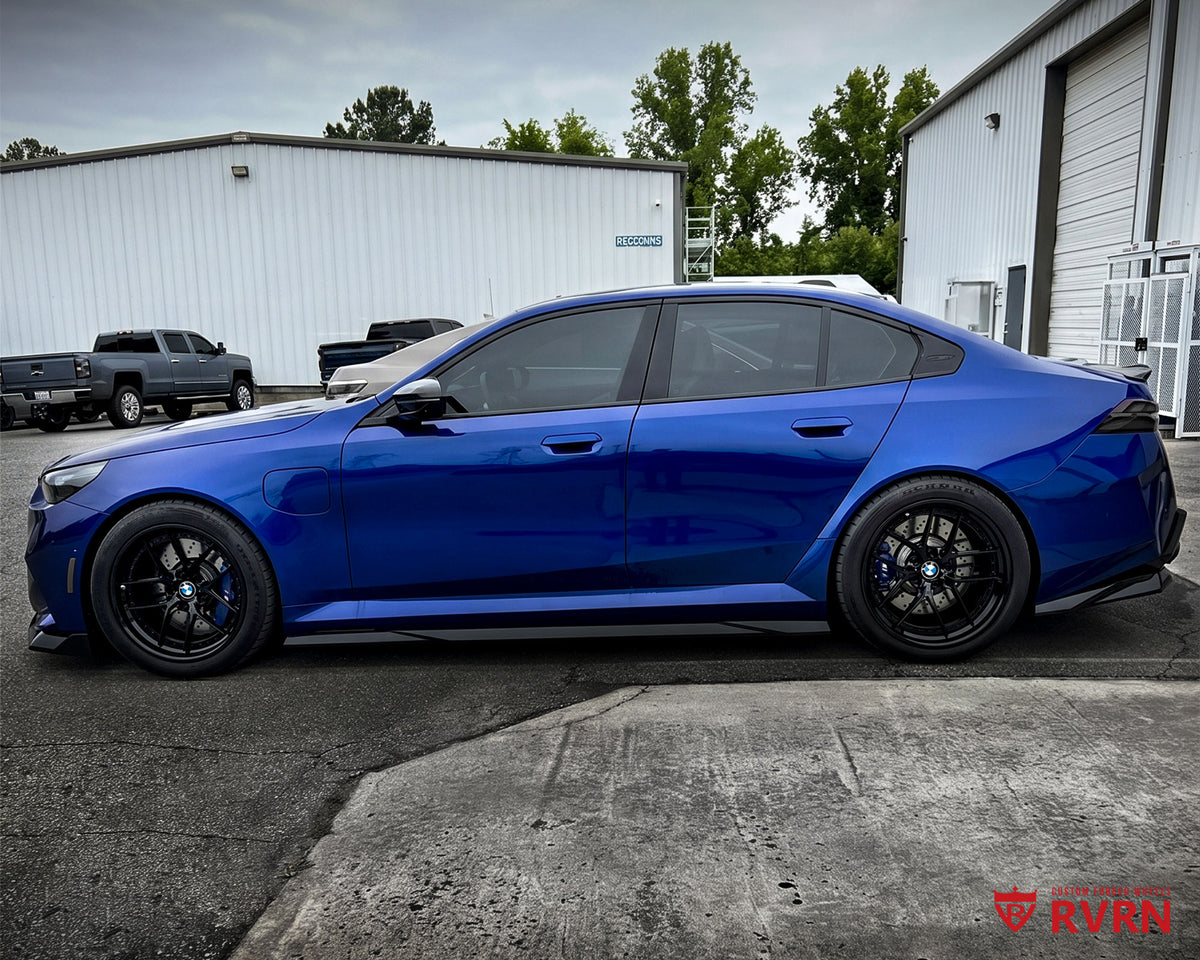

Second installation completed.
The revised setup achieved perfect brake clearance and achieved the desired visual impact with no vibrations or seating issues.
05/20/2026Final Fitment
Two FrontBarrels Remade
CaliperClearance Confirmed
PriorityProduction
07 · Process Improvements
Preventive & Quality Improvements
Triple Engineer Review Process
Before any order moves to production, it must pass triple verification: independent calculation by three different engineers, mandatory individual sign-off sheets, and a system lock unless all engineers provide identical results.
Key Parameter Dual-Verification
The system now enforces mandatory dual-validation for brake clearance margins, exact ET and offset windows, and wheel width and internal diameter matches.
Secondary Vehicle Configuration Confirmation
Even for successful cases, RVRN now re-confirms brake system upgrades or modifications, suspension changes or spacer use, and widebody or fender modifications.
Database Risk Flagging
Case #RVRN 15297 has been archived to our Edge Fitment library with automatic alerts for all future G90 platform builds. Fundamental cause: move from database-driven fitment to database plus physical configuration verification.
From the Engineering Team
Engineering is about handling the details others overlook.— RVRN Engineering Team
